6056 Dual Back-to-Back Data Center Fan | 12V 4.6A, PWM Speed Control, High Static Pressure, MRO Replacement Fan
Sale price
$49.99
Regular price
$69.99
Product Discription:
A reliable, high-performance cooling solution designed for data centers, server racks, and industrial equipment—perfect for MRO (Maintenance, Repair, Operations) teams. This dual back-to-back fan is a direct replacement for leading brands like Nidec, AVC, and Delta, delivering powerful cooling with quiet operation and smart speed control, ideal for 24/7 continuous use.
Key Features & Technical Highlights:
-

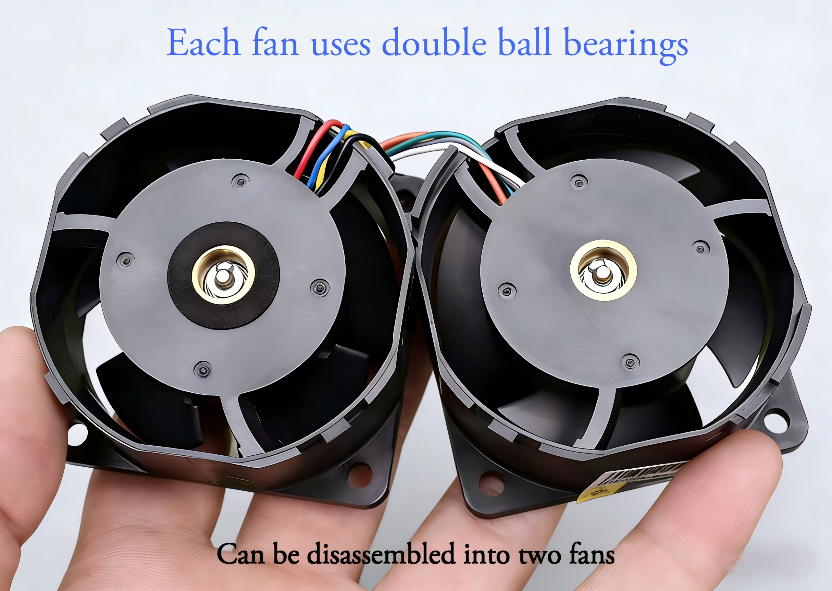

Dual Back-to-Back Turbo Design: Stacked dual-fan configuration doubles airflow and static pressure compared to single-fan models, ensuring efficient cooling for dense server environments.
-
High Power Performance: 12V DC voltage, 4.6A max current, and ~18,000 RPM rated speed—delivers massive airflow to handle extreme thermal loads in data centers and industrial equipment.
-
High Static Pressure: Optimized blade geometry provides industry-leading static pressure (≥1500 Pa), easily overcoming airflow resistance from heat sinks, dust filters, and tight server racks.
-
PWM Speed Control: 4-wire PWM (Pulse Width Modulation) control, supports 0-100% speed adjustment, automatically adapts RPM based on system temperature—balances performance, energy efficiency, and noise levels.
-
Quiet Operation: Precision-balanced blades, high-precision industrial ball bearing, and vibration-dampening frame—operates at ≤45dB (at 1m) even at maximum RPM, suitable for noise-sensitive server rooms.
-
Direct Brand Replacement: Drop-in replacement for Nidec, AVC, Delta 6056 series (and other 60x56mm dual-fan units), fits standard 60mm fan mounts, no modifications required for quick MRO repairs/upgrades.
-
MRO-Friendly: Built for 24/7 continuous operation, rugged construction for long service life, ideal for MRO inventory, emergency replacements, and server maintenance.
Full Technical Specifications:
|
Specification
|
Details
|
|---|---|
|
Model
|
6056 Dual Back-to-Back High-Power Server Fan
|
|
Form Factor
|

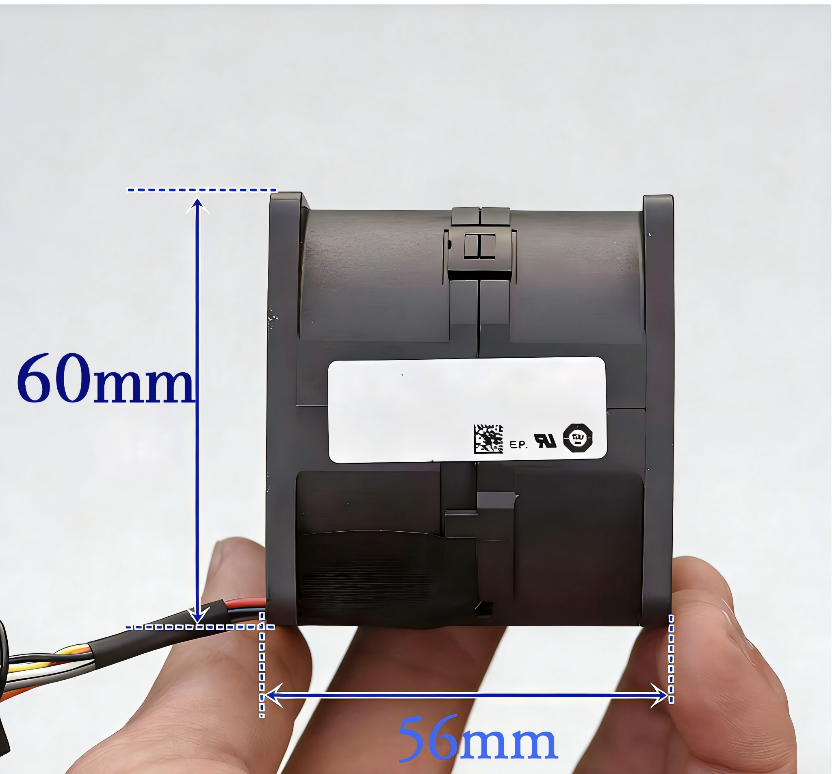

60mm x 60mm x 56mm (standard 6056 size)
|
|
Voltage
|
DC 12V (±20% tolerance)
|
|
Max Current
|
4.6A
|
|
Rated Speed
|
18,000~23,000 RPM (±5% tolerance)
|
|
Control Type
|
PWM (Pulse Width Modulation)
|
|
Bearing Type
|
High-precision industrial ball bearing (MTBF: ≥50,000 hours at 25℃)
|

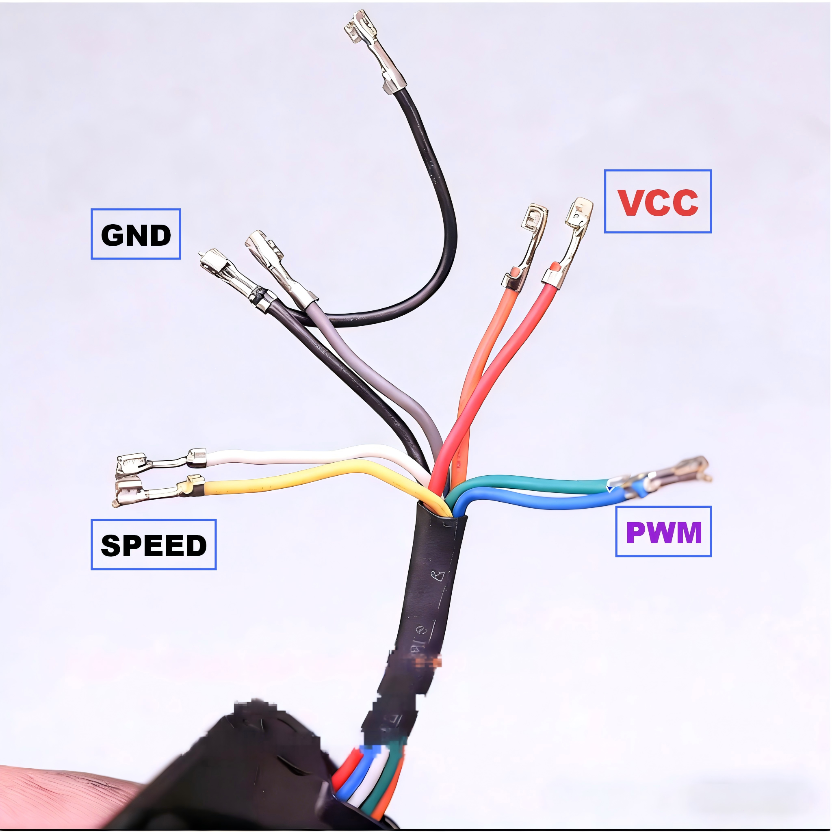

| Pinouts | GND, 12V Vcc, Speed, PWM |
|
Operating Temperature
|
-20℃ ~ +70℃
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|
Replacement Compatibility
|
Nidec, AVC, Delta 6056 series, and other 60x56mm 12V PWM dual-fan units
|
|
Application
|
Data centers, 1U/2U rackmount servers, industrial equipment, MRO maintenance, high-power workstations
|
Why Choose This Fan?
Perfect for MRO teams and data center operators—direct brand replacement saves time on repairs, 24/7 industrial-grade build ensures reliability, and PWM control balances performance with energy efficiency. Quiet operation, high static pressure, and dual-fan power make it the ideal cooling solution for mission-critical hardware.
